ST Female to SC Male Simplex Single-Mode Fibre Optic Cable Adapter
1. Product Overview:
ST-SC Fiber optic adapters for every application including flanged, threaded, metal, composite, and hybrid or plug varieties. The adapters are available in simplex or duplex configurations with a zirconia or Phosphor Bronze sleeve for high precision alignment.
The hybrid fiber optic adaptors allow users to convert from one connector type to another. These adaptors are comprised of a polymer outer body and inner assembly fitted with a precision alignment mechanism.
Fiber connectors of the same types, such as FC, SC, ST, while Optical Fiber Converters are used to connect different type connectors.
2. Optical Cable Adaptor Feature and Benefits:
- SC female to ST female Fiber Coupler
- Can be used with single-mode or multimode cable
- Connect two Simplex SC/ST patch cords together
- Simplex SIngle Fiber connection
- Free-hanging or panel-mount design
- Low insertion and return loss and back reflection
- RoHS Compliant
- Free samp
3. Fiber Optic Adapter Applications:
- FTTH, LAN, PON & Optical CATV
- Local ring net
- Fiber Optic Transmission Network
- Cable TV network
- Optical Fiber Lan
- Optical fiber testing instrument
- ODF, rack-mounted and wall-mounted optical fiber wiring unit
4. Optic Adapter Specification & Technology Parameters:
| Item | Value | Unit |
| Sleeve Material | Ceramic | / |
| Insertion Loss | Male | Typ. | ≤ 0.5 | dB |
| Min. | ≤ 0.2 | dB |
| Female | Typ. | ≤ 0.3 | dB |
| Min. | ≤ 0.2 | dB |
| Return Loss | UPC | ≥50 | dB |
| APC | ≥60 | dB |
| PC | ≥35 | dB |
| Insertion Loss Max. | 0.2 | dB |
| ∆ IL | Uniformity | ＜0.2 | dB |
| Durability (1000 times) | ＜0.3 | dB |
| Proof Test | 40N,10 minute | N |
| Insertion And Withdrawal Force | ≤19.6N | N |
| Operating Temperature | -25~+70 | ℃ |
| Storage Temperature | -25~+70 | ℃ |
| Protocol Standards | IEC60874-10/61300/TIA/EIA568 |
5. Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| | S: Simplex
D: Duplex | SC
FC
ST
LC
MU | APC
UPC
PC | Z: Zirconia ceramic P: Phosphor Bronze | W: With Flange
N: No Flange | W: With the shutter
N: No shutter |
| Fiber Mode | Connector Type | Connector Type | Sleeve | Flange Type | Shutter Type |
6.More Options Optic Adapters:
7. Wuhan Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Big Production Capacity
800 Skilled workers and 5 Main production Lines, the optic adapter 8,900 pcs/ Day.
Product Tags:
|
|

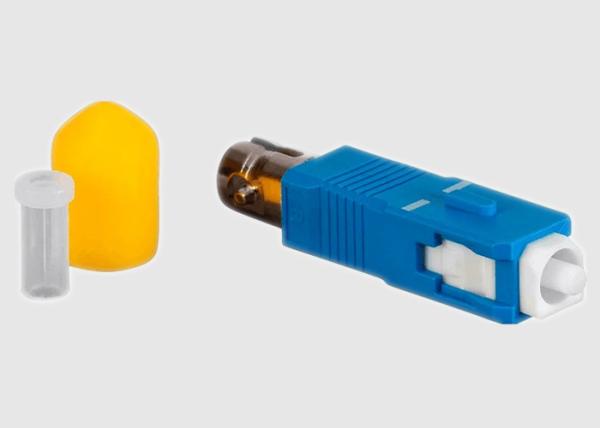

Simplex ST To SC Fiber Adapter Images
|
