144 Fibers OM3 LC Dulpex 100G MPO Fiber Cable

Product Categories
Wuhan Geehe Optical Communication Co.,ltd
Contact Now

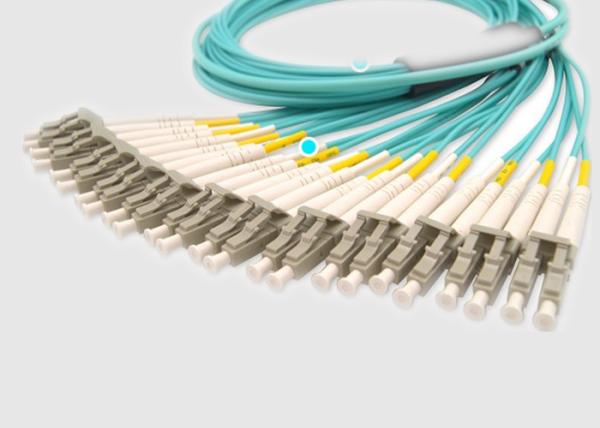

144 Fibers OM3 LC Dulpex 100G MPO Fiber Cable

Brand Name : Geehe or OEM

Model Number : GH-MT-0020

Certification : ISO9001:2015, ISO14001：2015

Place of Origin : Hubei, China

MOQ : 600 pcs

Price : Negotiation

Payment Terms : T/T,LC, Western Union, D/P,Cash,Ali Pay

Supply Ability : 8,900 pcs/day

Delivery Time : 5-7 Working Days for delivery

Packaging Details : Individual PE Bags, paper outer cartons

Model Name : MPO-MPO Multimode 8-Fiber Cables

Fiber Core : 8 core, 12 core or 24 core

Cable Diameter : Micro Cable Trunk Max OD 24 cores 4.5 ± 0.3mm Patchlead Max OD 24 cores 3.0 ± 0.1mm

Connector Type : MPO to LC UPC Duplex

Jacket Color : Aqua/Green/Yellow,etc

Fiber Jacket Material : Riser (OFNR), Plenum (OFNP), LSZH

Insulation : Plenum, Riser

Fiber Type : Mulit Mode (OM3, OM4, OM5 are optional)

Polish Type : UPC to UPC

Cable Assembly Lengths : 1 to 150 meter

Contact Now

24-144 Fibers OM3 LC Dulpex 40/100G MTP / MPO Fiber Optic Patch Cables


Mpo To MPO Cable Sell Point :

MPO24xFibers Ferrule Cable Assembly can be used with 24xfibers ferrules MPO to LC module providing 40/100G compatible infrastructure for legacy non-parallel optics 4/8/10/16G Ethernet/ Fiber Channels protocols networks.

Assemblies are offered in the main 2 standard variants as the Trunks using a double jacket 4.5 mm OD MicroCable structure and as a Patch leads using a single jacket, 3 mm OD MicroCable structure. The small and compact size of MIcroCable is ideal for high-density data center applications.
144 Fibers OM3 LC Dulpex 100G MPO Fiber Cable

Main Features& Benefits :

  • OS1/2, G.657A1, OM3, OM4
  • 24 Cores MicroCable Trunks (Double Jacket 4.5 mm OD)
  • LSZH, OFNR, OFNP cable jackets
  • Female/Un-Pinned and Male/ Pinned MPO connectors
  • High Quality- Factory terminated and tested
  • MPO Interface - MPO components feature superior optical and mechanical properties
  • Rapid Deployment: Factory terminated system saves installation and reconfiguration time during moves, ads, and changes
  • 100% tested Combination of high-quality components and manufacturing quality control

144 Fibers OM3 LC Dulpex 100G MPO Fiber Cable
Specifications and Parameter:

Fiber Optic Performance:

MPO ConnectorStandard SmLow Loss SmStandard MmLow Loss Mm
Insertion LossTypical(dB)0.350.20.350.2
Maximum(dB)0.750.350.60.35
Return Loss (dB)≥60 for APC
(8 angle polish)		≥20 for PC
≥50 for PC—
Male/Female(dB)Male:with pins,Female:without pins
Tensile Strength (dB)≤0.3 ( max 66N )
Vibration (dB)≤0.3 ( 10-55Hz )
Thermal Cycle (dB)≤0.3 (-40~75℃, 21cycles)


Geometric parameter of end-face:

ItemSpec
SMMM
RX(mm)MIN 2000
RY(mm)MIN 5
Fiber Height (nm)1000-3500
Max. diff. Height all (nm)MAX: 500
Max. diff. Height adj (nm)MAX: 300
X-Axis Angle ( °)-0.2 ~ 0.2
Y-Axis Angle ( °)PC: -0.2 ~ 0.2
APC: 7.8 ~ 8.2		-0.2 ~ 0.2
Core DipN/A-100 ~ 200



Ordering Information:

MPO-XX-XX-XX-X-XX-X-XX
A1: G657A1
A2: G657A2
M3: OM3
M4: OM4
M5: OM5		LZ: LSZH
NP: OFNP
NR: OFNR		FF: MPO /MPO(female to female )
MF: MPO/MPO (male to a female)
MM: MPO/MPO (male to male)		L: Low loss
B: Standard loss		12:1×12 core
48:4×12 core
72:6×12 core
96:8×12 core		A: TIA568 through-type
B: TIA568 Reverse type
C: TIA568 cross-type		5M to
50M
Gender TypeHousing colorFerruleConnector loss standardFiber coresPolarityFiber length



MPO To MPO Cable Application:

  1. Data Centre Infrastructure
  2. Storage Area Network- Fiber Channel
  3. Parallel Optics:40Gbps and 100Gbps Protocols
  4. Enterprise network cabling system
  5. Optic fiber communication networks
