12 Core Male To Female LSZH OM3 MPO Fiber Cable

Product Categories
Wuhan Geehe Optical Communication Co.,ltd
Contact Now

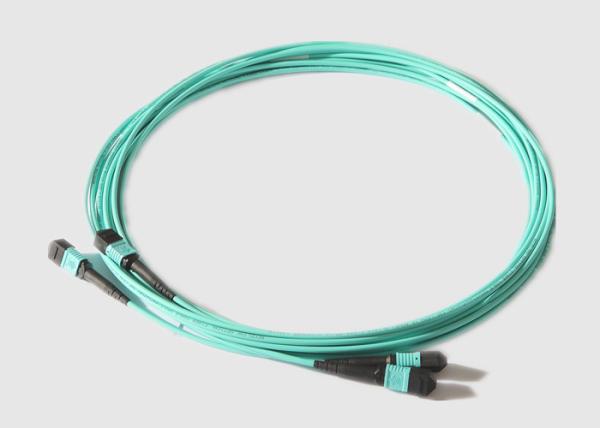

12 Core Male To Female LSZH OM3 MPO Fiber Cable

  • 1
  • 2
  • 3

Brand Name : Geehe or OEM

Model Number : GH-MT-003

Certification : ISO9001:2015, CE

Place of Origin : Hubei, China

MOQ : 500 pcs

Price : Negotiation

Payment Terms : T/T,LC, Western Union, D/P,Cash,Ali Pay

Supply Ability : 8,900 pcs/day

Delivery Time : 5-7 Working Days for delivery

Packaging Details : Individual PE Bags, paper outer cartons

Model Name : Mpo connectors optical fiber

Fiber Core : 8 core, 12 core or 24 core

Fiber Diameter : 3.0MM

Connector Type : MTP,MPO , MTP (Elite),MPO (Elite)

Jacket Color : Beige/Aqua/Green/Yellow,etc

Fiber Jacket Material : Riser (OFNR), Plenum (OFNP), LSZH

Fiber Length : 1m or as your request

Fiber Type : Single Mode (OM3, OM4, OM5 are optional)

Wavelength : 850nm/1310nm/1550nm

Application : Optical Amplifiers,fiber laser

Contact Now

12 Core Male to Female OM3 MPO Connectors Optical Fiber


Brief Description:

* Insertion loss type available in Standard, Elite / Low Loss

* Fiber count available in 8, 12, 24, 48 cores

* MTP/MPO connector type available in:Male, Female, Male to Female

* Fiber type available in SM (G652D, G657A1, G657A2), MM (OM3, OM4)

* Cable jacket type available in OFNR, LSZH, OFNP

* Multi-fiber connector types are available in MTP, MPO with APC or PC polishing type

* Cable length available in 1 to 999 meters, customization

* Cable type available in round, ribbon

* Improve and simplify fiber routing, decrease fiber management space

* Conforms to IEC-61754-7; EIA/TIA-604-5 (FOCIS 5) standards.

12 Core Male To Female LSZH OM3 MPO Fiber Cable


Main Features& Benefits:

* MPO Connector with Angled Boot

* Ideal for round, oval and bare ribbon fiber cable assembly

* High-performance IL & RL

* Housing can be removed for re-polishing

* Can be unplugged from the adapter with push-pull tab

* Available for 45-degree, 90-degree, and flexible boot

* High mechanical and thermal resistance


12 Core Male To Female LSZH OM3 MPO Fiber Cable



Specifications and Parameter:

Fiber Optic Performance:

MPO ConnectorStandard SmLow Loss SmStandard MmLow Loss Mm
Insertion LossTypical(dB)0.350.20.350.2
Maximum(dB)0.750.350.60.35
Return Loss (dB)≥60 for APC
(8 angle polish)		≥20 for PC
≥50 for PC—
Male/Female(dB)Male:with pins,Female:without pins
Tensile Strength (dB)≤0.3 ( max 66N )
Vibration (dB)≤0.3 ( 10-55Hz )
Thermal Cycle (dB)≤0.3 (-40~75℃, 21cycles)




Geometric parameter of end-face:

ItemSpec
SMMM
RX(mm)MIN 2000
RY(mm)MIN 5
Fiber Height (nm)1000-3500
Max. diff. Height all (nm)MAX: 500
Max. diff. Height adj (nm)MAX: 300
X-Axis Angle ( °)-0.2 ~ 0.2
Y-Axis Angle ( °)PC: -0.2 ~ 0.2
APC: 7.8 ~ 8.2		-0.2 ~ 0.2
Core DipN/A-100 ~ 200



Ordering Information:

MPO-XX-XX-XX-X-XX-X-XX
A1: G657A1
A2: G657A2
M3: OM3
M4: OM4
M5: OM5		LZ: LSZH
NP: OFNP
NR: OFNR		FF: MPO /MPO(female to female )
MF: MPO/MPO (male to a female)
MM: MPO/MPO (male to male)		L: Low loss
B: Standard loss		12:1×12 core
48:4×12 core
72:6×12 core
96:8×12 core		A: TIA568 through-type
B: TIA568 Reverse type
C: TIA568 cross-type		5M to
50M
Gender TypeHousing colorFerruleConnector loss standardFiber coresPolarityFiber length



Application:

Applications & Associated Standards
Array trunk cables
Array fiber to single fiber fanouts and cassettes
High fiber density card edge access
Optical switching interframe connections

12 Core Male To Female LSZH OM3 MPO Fiber Cable

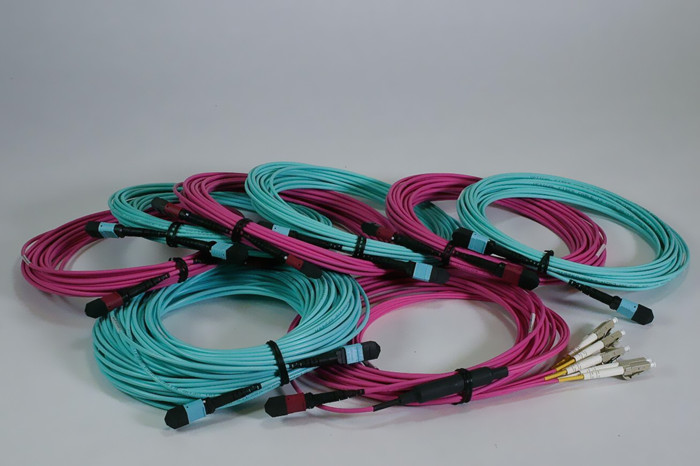

MPO Picture:

12 Core Male To Female LSZH OM3 MPO Fiber Cable
