Singlemode Simplex SC/APC Fixed 1DB Fiber Optic Attenuator

Product Categories
Wuhan Geehe Optical Communication Co.,ltd
Contact Now

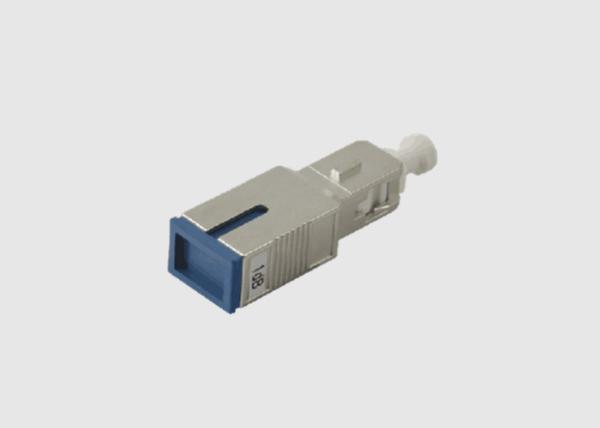

Singlemode Simplex SC/APC Fixed 1DB Fiber Optic Attenuator

  • 1
  • 2
  • 3

Brand Name : Wuhan Geehe

Model Number : GH-AT-SM-SU029

Certification : ISO9001:2015 By SGS, UL, RoHS,CE

Place of Origin : Hubei, China

MOQ : 10 pcs

Price : Negotiation

Payment Terms : T/T,LC,D/P,Ali Pay

Supply Ability : 60,000 pcs/ month

Delivery Time : WWithin 7-9 Working Days after confirm the order

Packaging Details : Plastic box with Pressure defense sponge, outer carton

Model Name : Attenuator For Fiber Optic

Connector Gender : Fixed Female to Female

Fiber Connector : LC/SC/FC/ST/LSH

Attenuation Value : 2db,3db,5db,6db,7db,10db,15db,30db etc

Ferrule Type : Zirconia Ceramic

Housing : Metal, Plastic

Transfer Mode : Singlemode

Max Optical Input Power : 200mW

Mating Durability : <0.2dB

Sleeve Material : Ceramic

Contact Now

Singlemode Simplex SC/APC Fixed 1DB Attenuator For Fiber Optic

Product Description:


In-line Male to Female Attenuators. Available for use in Singlemode 9/125, Multimode 50/125, and Multimode 62.5/125 applications. Our Male to Female Buildout Optical Attenuation (Pads) is available in all fiber modes with LC, LC/APC SC, SC/APC, FC, FC/APC, and ST types.

SC male-to-female attenuators contain doped fiber suitable for both 1310nm and 1550nm operation. Fixed attenuation values are available in 1dB increments from 1 to 20dB.

All Geehe Comm's attenuators are built with the highest quality materials and factory tested to ensure precise attenuation and performance.

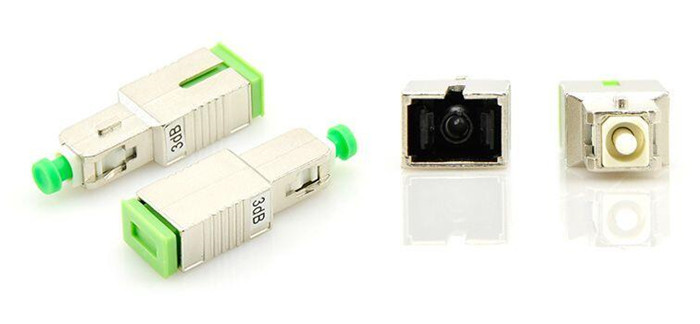

Singlemode Simplex SC/APC Fixed 1DB Fiber Optic Attenuator

SC Optic Attenuator Feature And Benefits:

  1. Free female to female fiber attenuator sample
  2. Acceptable quality 100 percent test
  3. High quality
  4. Low Back Reflection
  5. Accurate Attenuation
  6. Compatible with current conventional single-mode fiber
  7. 100% factory tested
  8. The goods safe carton protection

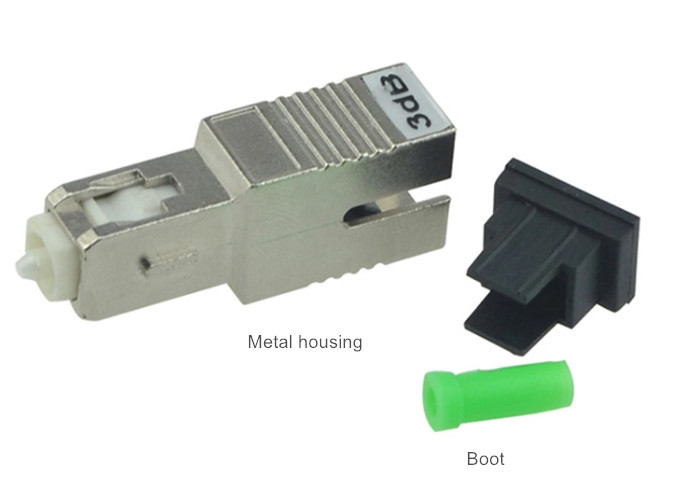

Singlemode Simplex SC/APC Fixed 1DB Fiber Optic Attenuator

SC Optic Attenuator Specification& Parameters:

Parameter Value
Physical Characteristics Plastic Material UL 94V-0ABS high-impact thermoplastic
Fiber Material Metal-ion doped optical fiber
Mechanical Characteristics Operating Temperature(℃) -40 ~ +85
Storage Temperature(℃) -40 ~ +85
Optical Performance Operating Bandwidth 1250nm~1625nm
Center Wavelength 1310nm and 1550nm
Attenuation Tolerance 1 to 10 dB:±0.5dB
11 to 30 dB:±0.5%dB
Return Loss UPC (dB) ≥45
Return Loss APC(dB) ≥55
PDL ≤0.1
Packaging Clear Ziploc Bag,1 Unit Per Bag

Ordering Information:

OTA- HF- XX- X- A- XX-
HF: Hight return loss type LC: LC
SC: SC
FC: FC		 1: APC
2:UPC		 03: 03DB
04: 04DB
Attenuator Type Connector Interface Polish Attenuation Value

SC Attenuator Application:

  • ​Fiber optical telecommunication system
  • Fiber optical CATV
  • Fiber optical sensor
  • Testing equipment
  • Optical power equalization
  • WDM and DWDM System channel balancing

Singlemode Simplex SC/APC Fixed 1DB Fiber Optic Attenuator

Geehe Factory Service:

1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity


2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space


3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards

4) Fast Delivery

For all orders with fast turnover, we use ERP System to control the order process and attenuator production line with skilled workers and QC follow on the line.
