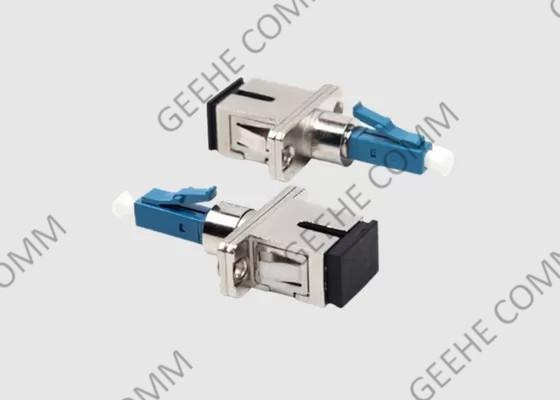

SC Female - LC Male 9/125µM Single Mode Simplex Fiber Optic Adapter

Product Categories
Wuhan Geehe Optical Communication Co.,ltd
Contact Now

SC Female - LC Male 9/125µM Single Mode Simplex Fiber Optic Adapter

  • 1
  • 2

Brand Name : Wuhan Geehe (OEM&ODM)

Model Number : GH-AD-0029

Certification : ISO9001:2015,Realiability Reports,CE,UL

Place of Origin : Wuhan,China

MOQ : 100 pcs

Price : Negotiation

Payment Terms : T/T, L/C, D/A, D/P, Western Union

Supply Ability : 3,000 pcs/per day

Delivery Time : Within 5-7 working days

Packaging Details : Plastic box per pc with pressure defense sponge, outer carton

Model Name : Hybrid fiber adapter

Mode Type : Simplex, Duplex

Adapter Insert Material : Zirconia/Ceramic, Metal

Housing Material : Metal, Plastic

Connector : LC Female to ST male

Fiber Counts : Simplex

Color : Blue

Durability : >1000 mating times

Operating Temperature : -40~75℃

Adapter Mounting Type : Reduced Flange

Contact Now

SC FEMALE - LC MALE SINGLE MODE SIMPLEX FIBER OPTIC ADAPTER


1. Product Overview:

LC-SC (male-female) Hybrid Adapter, 9/125µm Single Mode, Polymer Housing, Zirconia Sleeve

Fiber optic adapters are typically designed to connect two fiber optic patch cables together. They come in various types, most adapters are female on both ends to connect two patch cables, while some adapters are male to female which allow the port to accept a different connector than for which it was originally designed, and we also assemble hybrid adapters which accept different types of connects.



2. Optical Cable Adaptor Feature and Benefits:

  • ​Meet IEC, Telcordia-GR-326, and JIS performance requirements.
  • The high precision alignment sleeve
  • Materials compliant to RoHS
  • 100% inspected prior to shipment


3. Fiber Optic Adapter Applications:

  1. FTTH, LAN, PON & Optical CATV
  2. Local ring net
  3. Local Area Network
  4. Telecommunication Networks
  5. Equipment Test
  6. High-speed transmission systems
  7. Fiber optic sensing
  8. Industrial, Mechanical, and Military
  9. Datacenter


4. Optic Adapter Specification & Technology Parameters:

Item Value Unit
Sleeve Material Ceramic /
Insertion Loss Male Typ. ≤ 0.5 dB
Min. ≤ 0.2 dB
Female Typ. ≤ 0.3 dB
Min. ≤ 0.2 dB
Return Loss UPC ≥50 dB
APC ≥60 dB
PC ≥35 dB
Insertion Loss Max. 0.2 dB
∆ IL Uniformity ＜0.2 dB
Durability (1000 times) ＜0.3 dB
Proof Test 40N,10 minute N
Insertion And Withdrawal Force ≤19.6N N
Operating Temperature -25~+70 ℃
Storage Temperature -25~+70 ℃
Protocol Standards IEC60874-10/61300/TIA/EIA568



5. Ordering Information:

OFC -X -XX -XX -XX -X -X
S: Simplex
D: Duplex		 SC
FC
ST
LC
MU		 APC
UPC
PC		 Z: Zirconia ceramic P: Phosphor Bronze W: With Flange
N: No Flange		 W: With shutter
N: No shutter
Fiber Mode Connector Type Connector Type Sleeve Flange Type Shutter Type



6.More Options Optic Adapters:



7. Wuhan Geehe Comm Service:

1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity


2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space


3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
